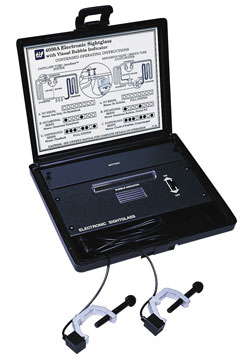

Electronic Sight Glass TIF4000A
Features & Applications:
The TIF4000A “sees” into the refrigerant tubing by means of ultrasonics. Two sensors are used, one for transmitting and one for receiving. These sensors are in the form of clamps which attach to any metallic refrigeration tubing. An audible beeping sound quickens as bubbles or floodback are sensed, and a row of LED's light, simulating bubble movement in the tubing..
Features:
- Optimizes refrigerant charge for maximum cooling
- Operates on any metal tubing
- Four foot cord
- Operates through use of ultrasonics
- Eliminates the need for an optical sight glass
- Checks for refrigerant floodback
- Built into ABS carrying case
Spec Summary:
|
Operating Temp::
|
32 to 125ºF (0 to 52ºC)
|
|
Power Supply:
|
(1) 9V battery
|
|
Response Time:
|
Instantaneous
|
|
Probe/Cord Length:
|
48" (1.2 m)
|
|
Battery Life:
|
60 hours (alkaline)
|
|
Size:
|
2.12" x 7.00" x 9.50"
|
|
Weight:
|
1.6 lb.
|
|
Warranty:
|
One year warranty
|
|
Connection
|
Tubing 1/8 to 1 1/4
|
Available upon request
