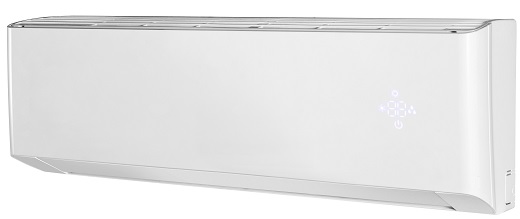

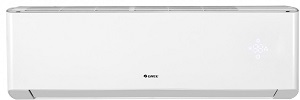

MODEL: AMBER GRS 241 EI / JAB N3
- Nominal Output: 7.00 / 7.00
- Nominal Output: 23,884 / 23,884
- Design Load (Pdesign) (C / A / W) * 7.00: / 7.00 / 7.00 / 7.00
- Performance Range: 2.00-9.00 / 2.00-9.50
- Performance Range: 6.824-30.708 / 6.824-32.414
- Consumption (min-nom-max): 450-1.850-3.700 / 380-1.750-3.800
- Operating current (nom): 11.0 - 16.4 10.7 - 16.4
- Annual consumption: 395 4,455 / 2,450 / 2,130
- SEER - SCOP (C / A / W): 6,50 A + 3,50A / 4,10A + / 5,30A +++
- Operating range: -18 ~ 52 -30 ~ 24
- Electrical supply: 230V ~ 1N - 50Hz
- Power Supply Cable / Aux .: 3x2.5 - OXI / 4x1.5
- Compressor type: 2-STAGE GREE LANDA Rotary
- Expansion Type: Electronic Expansion Valve
- Air supply: 1200/1050/950/900/850/800/750
- Noise Pressure Level Es. (Y / M / X) - Ex .: 50/46/43/41/39/37/35 - 58
- Sound Power Level Es. (Y / M / X) - Ex .: 64/60/57/55/53/51/49 - 69
- 1/4 "- 5/8" liquid - gas pipe diameter
- Refrigerant filling (original / over 5m): R32 - 2.00kg / 50g / m
- Maximum Length / Height of tubes: 50/30
- Dist. Int. Mon. WxHxB / Weight: 1101x327x249 / 16.5
- Dist. Ext. Mon. WxHxB / Weight: 980x790x427 / 65
