Safety cabinets for interiors and exteriors BBASIC120G, BBASIC60G

SAFETY CABINETS FOR COMPRESSED GAS CYLINDERS FOR interiors and exteriors

Entirely built in cold press-bent and painted FE P01 zinc plated steel sheet (Skin passat), thickness 10/10 mm, after degreasing treatment with afirst application of epoxy primer.

2 subsequent applications of thermosetting powders and following passage in thermal gallery at 200 °C.
“Monolith” type construction, with cabinet levelling supports at its base.
Hollow core and reversible doors, built as above, equipped with safety lockhandles and lock.
110° opening to enable shelf extraction without tilting.
Safety warnings indicate the presence of dangerous and toxic productsas well as the capacity and limit of product to be stored.
Chain and spring catch inner to hook the cylinders.
Pre-arranged for modular assembly.
Safety labelling included.
CLOSING SHEET RAMP FOR EASY REPLACEMENT OF CYLINDERS.

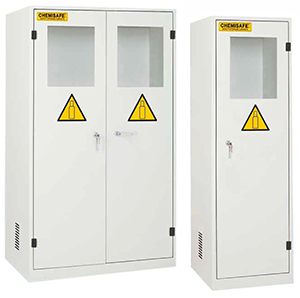

BBASIC60: 1 full door cabinet, external dimensions WxDxH: 600x600x1950mm, internal dimensions: 530x540x1850mm ,weight: 70kg, for 1-2 cylinders (BBASIC60G model with polycarbonate door)
BBASIC120: 2 full doors cabinet, external dimensions WxDxH: 1200x600x1950mm, internal dimensions: 1130x540x1850mm ,weight:125kg, for 3-4 cylinders (BBASIC120G model with polycarbonate door)

Call us for a price
