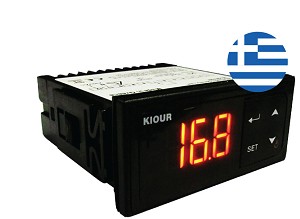

COOLING / HEATING THERMOSTAT - MICF2 - KIOUR

COOLING / HEATING THERMOSTAT - MICF2 - KIOUR

• Thermostat for cooling - heating control applications
• It also acts as a safety thermostat
• It has two relays, where the first relay operates in PID (ON heating only) or ON-OFF mode while the second only operates in ON-OFF mode
• Both relays are set in cooling or heating mode with one set point or two set-points
• An NTC 10K scale -37 ÷ + 110 ° C (-34 ÷ + 230 ° F) or PTC 1K scale -37 ÷ + 110 ° C (-58 ÷ + 230 ° F)
• Relay 1 at 250Vac 16A and relay 2 at 250Vac 10A
• Operating temperature: -15 ÷ + 55 ° C
• Storage temperature: -20 ÷ + 80 ° C
• Serial input
• Power supply: 230VAC 50 / 60Hz / Maximum operating power: 3W
• The device is mounted on a panel face with a 29x71mm hole and secured with side plates
• Connection with terminals 18A
